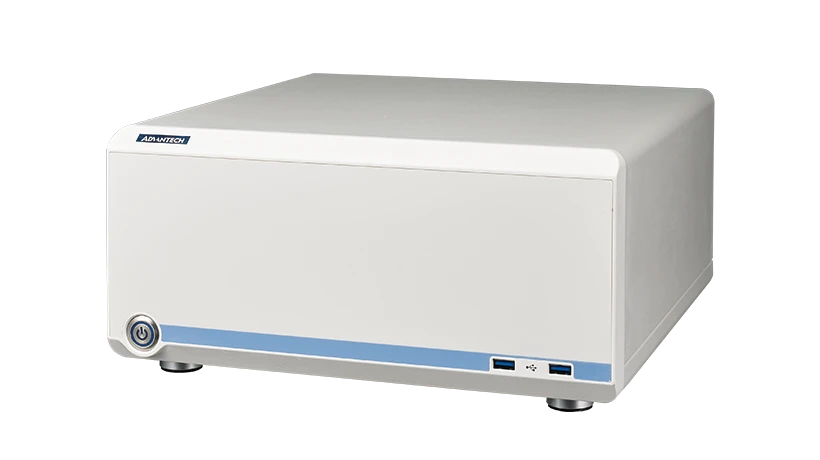

USM-500-7400AA1

The Advantech USM-500 is a professional mini-tower / standalone medical computer designed for hospital, imaging, and clinical workstation environments. It supports Intel® Core™ i3/i5/i7 and Xeon® 12th/13th/14th Gen processors (65 W TDP) on the Intel® R680E chipset, with up to 128 GB DDR5 4800 MHz memory across 4 U-DIMM slots. Expansion includes PCIe x16 Gen3, PCIe x8 Gen3, PCIe x4 Gen4, NVMe M.2, and Wi-Fi M.2 slots. Dual HDMI/DisplayPort for multi-display imaging, quad 2.5GbE LAN, internal 900 W medical-grade PSU, software RAID 0/1/5/10, and optional TPM 1.2/2.0. Certified to IEC/EN 60601-1 3.2 and IEC/EN 60601-1-2 4.1 for medical deployment.
