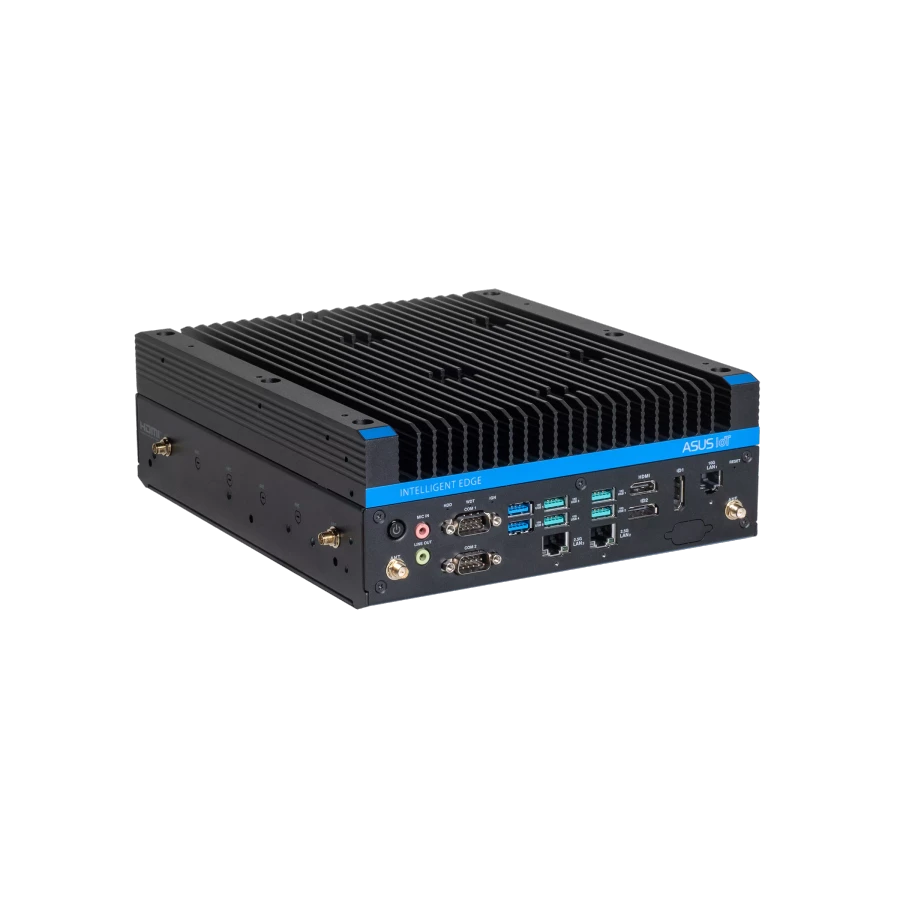

RUC-1000D -U9-285T Barebone

ASUS IoT RUC-1000D is a rugged, high-performance, fanless edge AI computer featuring an Intel® Core™ Ultra CPU, up to 64GB DDR5 memory, and multiple M.2 slots for expanded storage and connectivity. It supports multiple standardized half-rack configurations, and 2U-height designs, ensuring seamless integration into existing industrial deployments. RUC-1000D supports RAID 0/1/5/10 configurations with an optional SSD chassis for up to six 2.5-inch SSDs. With rich I/O, including 10GbE LAN and ignition power control, and built for MIL-STD-810H compliance and wide temperature ranges (from -25°C to 70°C), it is ideal for demanding applications such as factory automation, industrial control and smart city infrastructure. To protect critical data, RUC-1000D complies with IEC 62443-4-1 cybersecurity standards, ensuring robust protection against cyber threats. Additionally, the integrated iBMC module enabling out-of-band (OOB) management, supporting remote monitoring, rapid system recovery, and reduced operational downtime.

Fanless, rugged, high-performance edge computer

Powered by the latest Intel® Core™ Ultra 200S series processors, the ASUS IoT RUC-1000D delivers exceptional computing power for demanding edge AI applications. Built on TSMC’s advanced 3nm process, it features higher CPU clock speeds and an integrated neural processing unit (NPU) for accelerated AI tasks. With DDR5-6400 memory and PCIe® 5.0 support, the RUC-1000D provides next-gen performance and bandwidth to meet the needs of diverse industrial workloads.

Superior AI computing

• 3.5X AI Performance gen to gen
• Up to 24 cores / 24 threads
• Supporting DDR5-6400 memory
• Rich I/O with 10x USB & 6x COM

Expanded storage flexibility

RUC-1000D supports four additional 2.5-inch hot-swappable SSD trays with RAID 0/1/5/10, ensuring ample storage capacity and enhanced data protection. The device computer is also MIL-STD-810H certified for resistance to shock and vibration, making it ideal for rugged deployments.

Hassle-free installation

Designed with serviceability in mind, the heatsink can be easily removed by loosening 12 screws, simplifying CPU, RAM, and M.2 SSD installation. The system is housed in a standard half-rack (19-inch/2) 2U chassis, enabling easy integration into industrial cabinets.

Advanced thermal design for unmatched stability

RUC-1000D employs a fanless architecture that prevents dust build-up, enabling silent operation and delivering unthrottled, stable performance even under harsh environmental conditions.

Engineered for the extreme

RUC-1000D is engineered for perception AI and computer vision applications in the most demanding industrial environments. Built to thrive where others fail, it delivers unwavering performance in extreme temperatures (-25°C to 70°C) and boasts MIL-STD-810H certification for exceptional ruggedness. Its 8-48V wide-range DC-in with ignition control ensures reliable power delivery, making it the ideal solution for mission-critical deployments.

• -25°C to 70°C temperatures
• Ignition power control for vehicle applications
• 8-48V Range DC-in
• IEC 62443-4-1 certified for cybersecurity
• MIL-STD-810H compliant for reliability

Comprehensive software-management toolkit

• RUC-1000D integrates ASUS IoT Cloud Console (AICC) — a centralized platform for managing and analyzing IoT device data across various OS environments. With an intuitive UI and robust encryption, AICC empowers users to manage edge deployments in transportation, smart cities, and beyond.
• It also supports an iBMC module with out-of-band (OOB) management for remote monitoring, quick system recovery, and reduced downtime — ideal for smart factory operations.

Seamless connectivity

Equipped with M.2 slots for 4G/5G NR and WiFi 6/6E, RUC-1000D ensures high-speed data transfer and reliable networking, future-proofing industrial IoT deployments.

ASUS synergy in RUC design expertise

The ASUS IoT RUC series embodies wider cross-domain innovation by ASUS through integrating technologies and expertise from multiple, diverse product lines. It leverages high-performance computing and high-speed I/O interface designs from ASUS AI servers, and incorporates the Q-Release Slim mechanism — a popular feature of ASUS motherboards — for tool-free GPU removal, reducing maintenance complexity and mechanical risk. In addition, ASUS IoT contributes robust hardware development and rigorous industry-standard verification processes. Early engagement with leading GPU vendors also ensures timely design validation and seamless integration of next-generation graphics cards.

Versatile industrial AI applications

Machine vision

• High-performance CPU+GPU+NPU support deep-learning image recognition and real-time inspection
• Rich I/O: USB, PoE, and isolated DIO for flexible camera and sensor connections
• MIL-STD-810H-certified ruggedness for factory-floor deployment

Autonomous vehicles

• Wide 8–48V DC-in with ignition control for in-vehicle use
• Connectivity for LiDAR, mmWave radar, and CAN bus for full sensor integration
• Vibration-resistant half-rack design ideal for mobile deployment

Intelligent video analytics

• Designed for edge inference in smart cities and public safety monitoring
• Supports PoE for IP camera deployment and USB for peripheral flexibility
• Reliable connectivity via M.2 LTE/5GNR/WiFi 6 modules
• Fanless thermal design supports stable operation in harsh outdoor environments
• Total of six 2.5-inch hot-swappable SSD trays for maximized storage capacity
