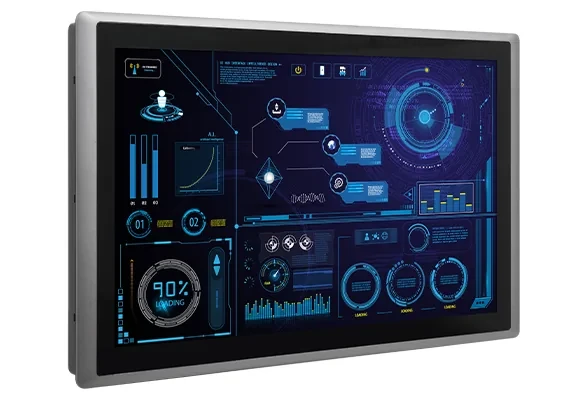

CV-W121 / P2302

The CV-100/P2302 series are high-performance modular industrial panel PCs supporting the latest Intel® Core™ Ultra processors (Meteor Lake-PS) across 20 model variations with flexible expansion capabilities. Rich I/O, easy on-site maintenance, and rugged design make it well suited to demanding HMI and industrial control applications.

Improved Performance x Power-Saving x AI Boost

The P2302 series supports Intel® Core™ Ultra 7/5/3 U Series (Meteor Lake-PS) processors with up to 12 cores and 15W low power consumption, providing 1.8 times the performance of the previous model. The new built-in Intel NPU delivers faster and more efficient AI acceleration for high-volume image processing and AI recognition.

High Flexibility, Unlimited Applications

Supporting Core Ultra U-series LGA CPUs for customizable performance, it features M.2 Key B/E slots for 5G, Wi-Fi, Bluetooth, NVMe SSDs, and I/O expansion. The P2302E further supports PCI/PCIe slots for expansion cards (up to 75W, 111 x 169 mm), enabling diverse applications.

CDS Technology

Our exclusive CDS (Convertible Display System) technology enables easy maintenance in the field and simplifies future upgrades. Replacing the display or improving system performance only requires replacing a single component, significantly saving upgrade costs.

Complete Range of Sizes

The series has various display options to suit various applications, including screen sizes from 12" to 24", Full HD resolution, up to 1,800 nits high brightness, and projective capacitive touchscreen.

Wide Temperature, Safe, Reliable

Industrial-grade protections overcome harsh outdoor environments and unpredictable climates, including wide operating temperature, wide voltage input, and an IP65 waterproof and dustproof front panel.
